CORIOGRAPH◊ Pre-Op Planning and Modeling Services
Optimize your knee, hip and shoulder replacement procedures with personalized solutions for both surgeon and patient.*
Optimize and personalize surgery

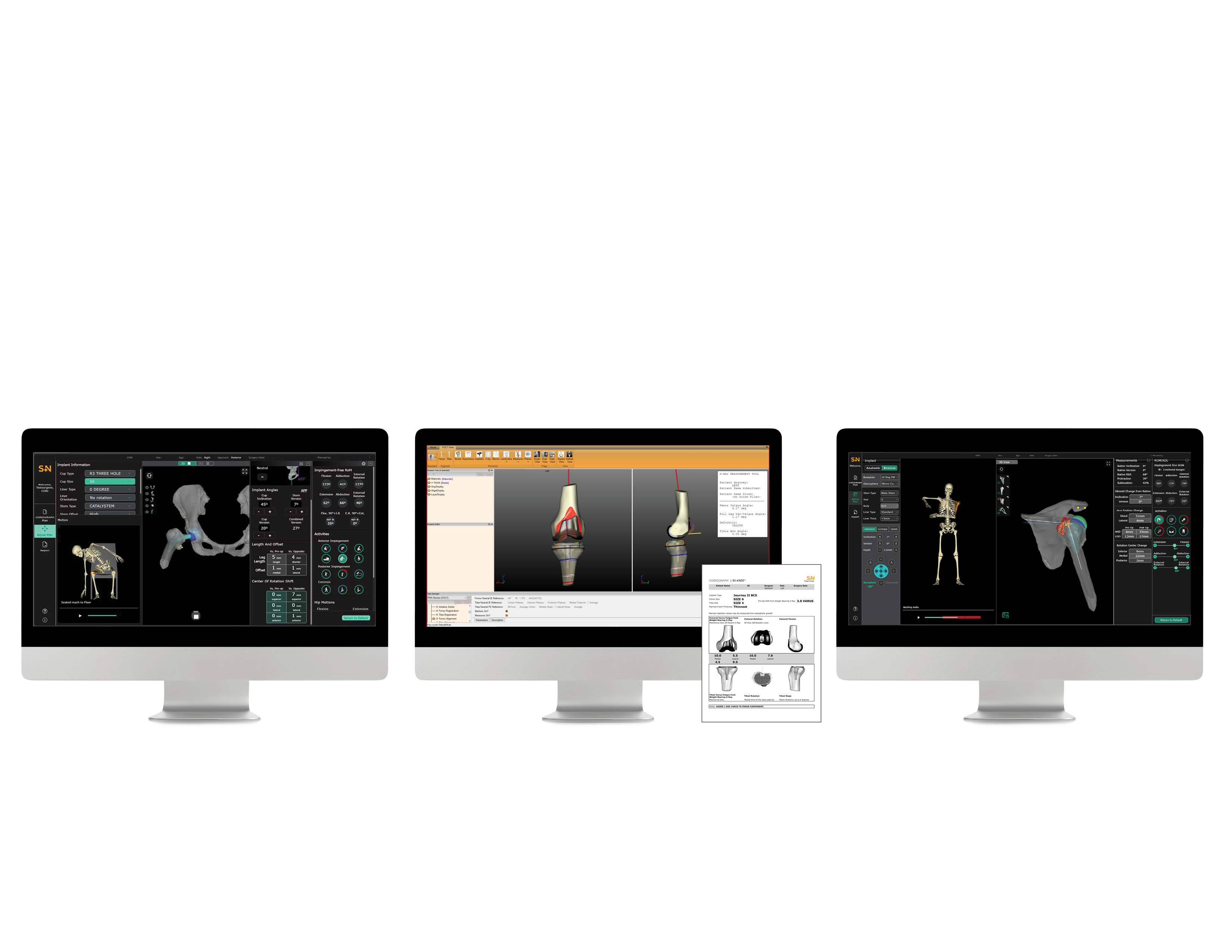

With our CORIOGRAPH Pre-Op Planning and Modeling Services and the CORI Surgical System’s image-agnostic solution, we offer a pre-operative planning solution for each individual knee arthroplasty patient.
Using our advanced simulation technologies in hip arthroplasty allows a new dimension of personalized planning and ultimately supports the intra-operative surgical workflow.
With the addition of shoulder arthroplasty, surgeons can now combine advanced planning tools with their own preferences to achieve a truly patient-specific approach.
Watch the short video for a brief overview of CORIOGRAPH Pre-Op Planning in hip and knee replacement.
For knee arthroplasty

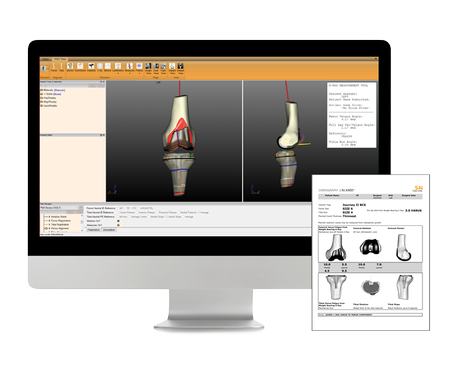

CORIOGRAPH Pre-Op Planning and Modeling Services use the advanced capabilities of our digital software to pre-operatively plan total and partial knee arthroplasty, ultimately facilitating robotic-assisted surgery using our CORI◊ Surgical System and proven implant technology…harnessing the power of one platform.

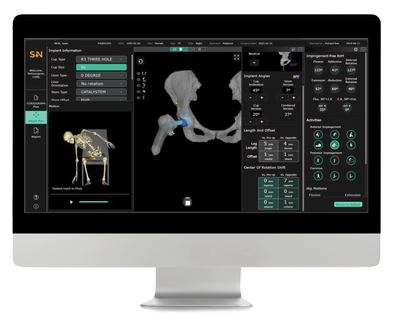

For hip arthroplasty
CORIOGRAPH Pre-Op Planning allows advanced modeling through 2D- and 3D-based planning, allowing surgeons to assess the risk of impingement for each patient through simulated activities of daily living. When used with RI.HIP Navigation on the CORI Surgical System, the pre-operative plan can help guide cup placement, leg length and offset intra-operatively.

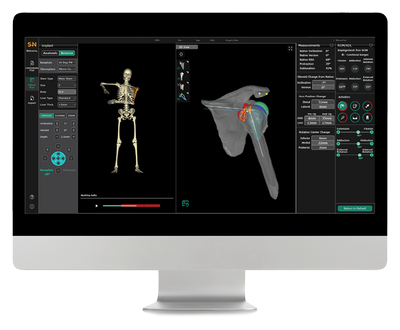

For shoulder arthroplasty
Introducing personalized pre-operative planning for both total and reverse shoulder arthroplasty, CORIOGRAPH Pre-Op Planning and Modeling Services are designed to minimize impingement through personalized service and surgeon planning tools, via simulation of personalized activities of daily living (ADL).2-7 The advanced biomechanical simulation considers scapulothoracic motion to help inform the patient specific range of motion, thereby guiding optimal implant placement.2-7
Product Feature
Clinical evidence
Medical Education
No results
Related Products
Disclaimers
*Please refer to the usage guidance for specific functionality across different joint indications. The combination of CORIOGRAPH Services and the CORI System allow image-based pre-operative planning and/or an image-free intra-operative workflow, depending on the indication. Please refer to the relevant guidance for both systems, or speak to a Smith+Nephew representative, for further information.
**Based on S+N data on file for the VISIONAIRE◊ System from 2009 - 2024.
Products may not be available in all markets because product availability is subject to the regulatory and/or medical practices in individual markets. Please contact your Smith+Nephew representative or distributor if you have questions about the availability of Smith+Nephew products in your area. For detailed product information, including indications for use, contraindications, precautions and warnings, please consult the product’s applicable Instructions for Use (IFU) prior to use.
